PCJ Assemblies
Dripper

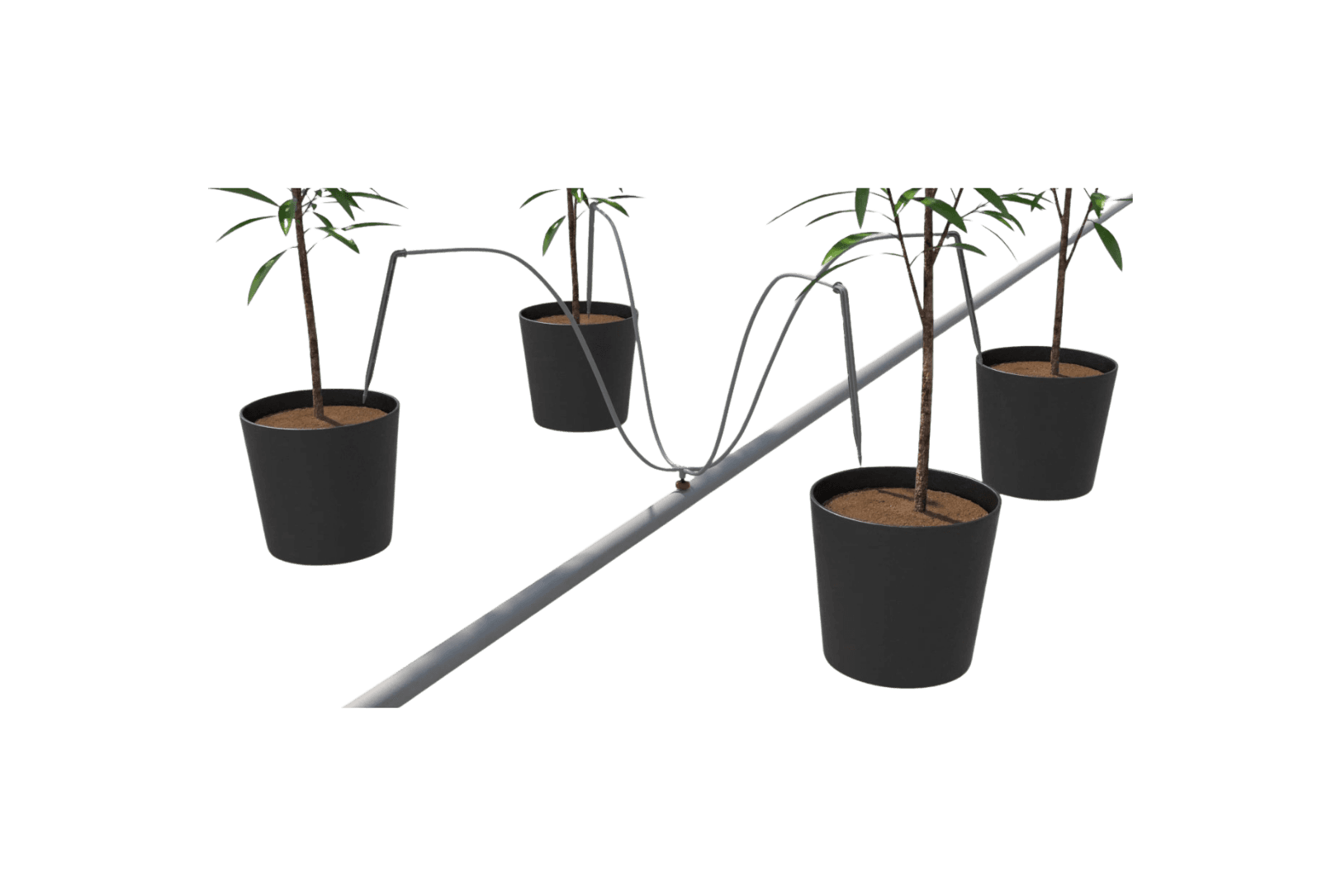

The PCJ Spider Assemblies are designed as pre‑assembled, multi‑outlet solutions for precise irrigation in containers, greenhouses, nurseries, and pot applications.
Engineered to maximise flexibility, they enable the accurate splitting of water supply to multiple irrigation points, ensuring each plant receives consistent and controlled delivery.
Built to the same high standards as all Netafim components, these assemblies combine durability with ease of installation, reducing labour requirements while maintaining system reliability. By supporting uniform water distribution and adaptable placement, they enhance irrigation efficiency, optimise resource use, and contribute to improved crop performance.
Technical Specs
Pressure-compensated range according to tables below.
Recommended filtration: 130 micron / 120 mesh. Filtration method selected based on the kind and concentration of dirt particles contained in the water. Wherever sand exceeding 2 ppm exists in the water, a Hydrocyclone should be installed before the main filter. Where sand/silt/clay solids exceed 100 ppm, pre treatment it should be applied following Netafim™ expert instructions.
TurboNet™ labyrinth with large water passage.
Insertable into thick wall blank PE pipes (0.90, 1.00, 1.20 mm).
Injected dripper, very low CV with injected silicon diaphragm.
High UV resistant. Resistant to standard nutrients used in agriculture.
Compliance ISO 9261 international standards.
Different outlets: nipple (press fit), straight or angled barb to 3 mm ID micro-tube, straight barb to 4 mm ID micro-tube
The PCJ Spider Assemblies are designed as pre‑assembled, multi‑outlet solutions for precise irrigation in containers, greenhouses, nurseries, and pot applications.
Engineered to maximise flexibility, they enable the accurate splitting of water supply to multiple irrigation points, ensuring each plant receives consistent and controlled delivery.
Built to the same high standards as all Netafim components, these assemblies combine durability with ease of installation, reducing labour requirements while maintaining system reliability. By supporting uniform water distribution and adaptable placement, they enhance irrigation efficiency, optimise resource use, and contribute to improved crop performance.
Technical Specs
Pressure-compensated range according to tables below.
Recommended filtration: 130 micron / 120 mesh. Filtration method selected based on the kind and concentration of dirt particles contained in the water. Wherever sand exceeding 2 ppm exists in the water, a Hydrocyclone should be installed before the main filter. Where sand/silt/clay solids exceed 100 ppm, pre treatment it should be applied following Netafim™ expert instructions.
TurboNet™ labyrinth with large water passage.
Insertable into thick wall blank PE pipes (0.90, 1.00, 1.20 mm).
Injected dripper, very low CV with injected silicon diaphragm.
High UV resistant. Resistant to standard nutrients used in agriculture.
Compliance ISO 9261 international standards.
Different outlets: nipple (press fit), straight or angled barb to 3 mm ID micro-tube, straight barb to 4 mm ID micro-tube
