Product Description
Product Description
PVDF
Dosing Pumps
The MixRite PVDF (Polyvinylidene Fluoride) series is the specialized choice for growers and industrial operators working with highly aggressive chemicals or concentrated acids.
While it maintains the same reliable water-powered logic as the standard MixRite range, the entire unit is constructed from high-performance PVDF, providing exceptional resistance to chemical degradation that would damage standard plastics.
This model is particularly essential for pH control applications, such as acid injection for water treatment or the delivery of advanced cleaning agents. By combining the precision of proportional dosing with professional-grade chemical resilience, the PVDF series ensures a long operational life in the most demanding environments where durability is non-negotiable.
Technical Specs
Model: MixRite PVDF (Available in 2500 and TF series)

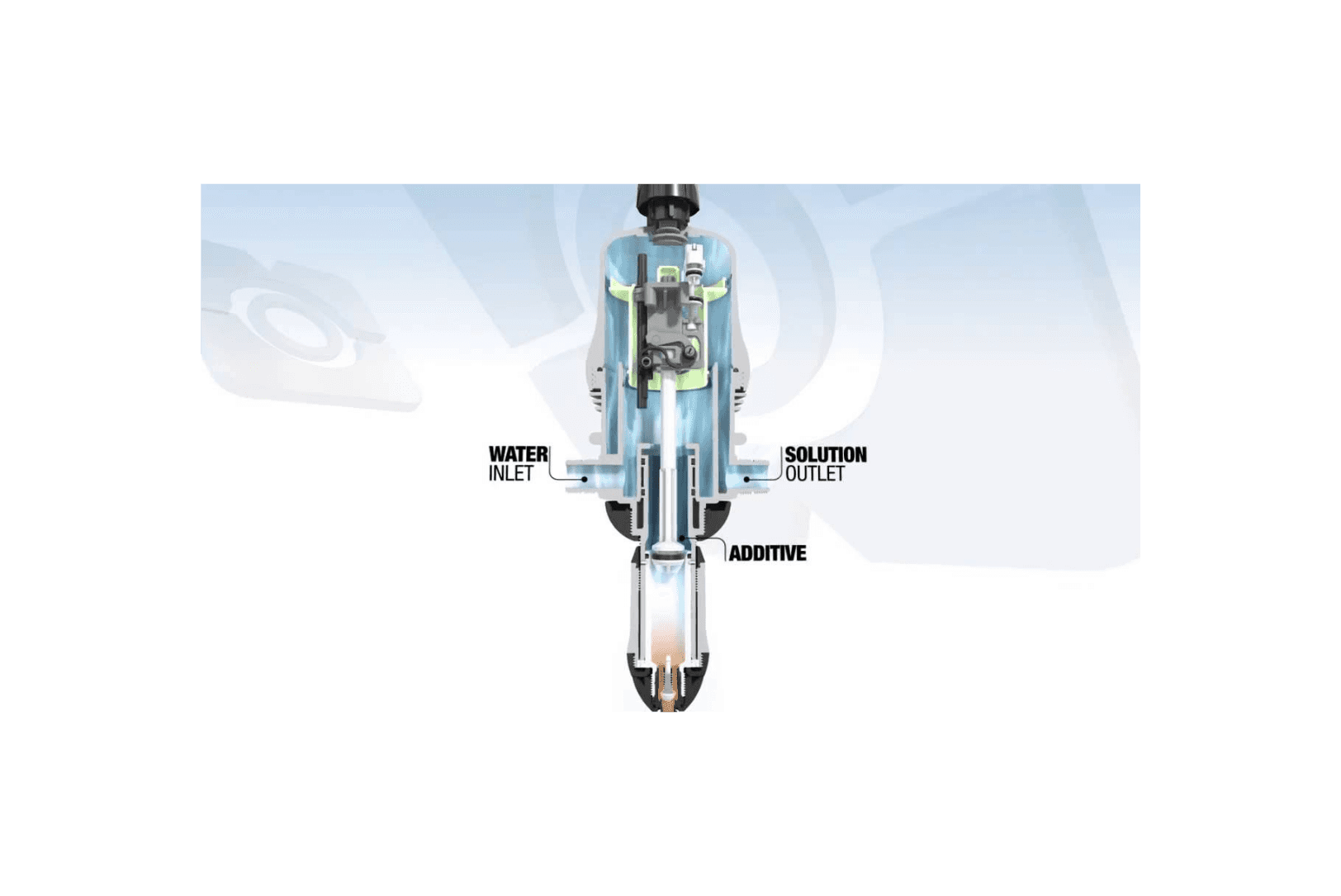

Power Source: Hydraulic (Water-driven)
Flow Range: Varies by base model (typically 2.5m³/h up to 25m³/h)
Dosing Ratio: Available in multiple ranges (e.g., 0.2% to 2% or 0.4% to 4%)
Operating Pressure: Works from 0.2 bar up to 8 bar (depending on model)
Material: Full PVDF body and internal components for maximum resistance to strong acids and aggressive chemicals
Inclusions: Typically supplied with a specialized acid-resistant suction hose, weighted filter, and a PVDF-compatible spare seal kit
